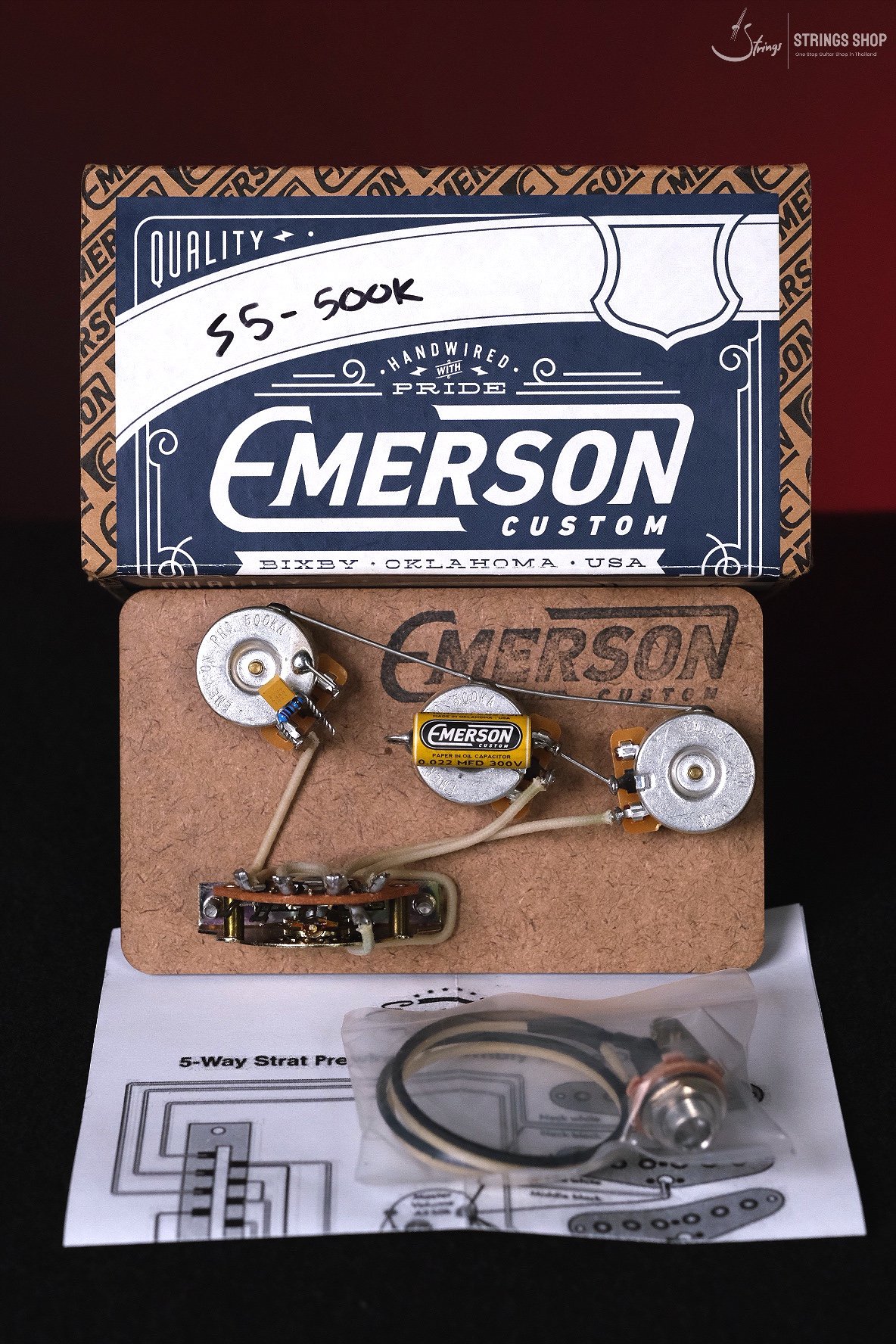

Emerson Custom 5-Way Strat Prewired Kit

SKU

S5

Includes

• (3) CTS Split Shaft Potentiometers
• (1) Oak Grigsby 5-Way Switch
• (1) Switchcraft 1/4" Mono Input Jack (PREWIRED)
• (1) 0.047uf Emerson Paper in Oil Capacitor *(0.022uf are used with 500K-Ohm Pots Option)*
• (1) Volume Mod
• Wiring Diagram

Control Layout

• Master Volume
• Tone
• Tone

Switch Positions

1. Bridge
2. Bridge & Middle in Parallel
3. Middle
4. Middle & Neck in Parallel
5. Neck

Installation Tips for Knobs on Split Shaft Pots

Our Emerson Pro split shaft pots are made to fit USA Spec 24 spline push-on knobs. Some USA & Import Guitars will need new USA Spec Knobs as even some US makers use import spec parts which will not work with our pots. We recommend that you don't rush the knob install process. If your knob is too tight and is not going on ,slightly crimp together the top of the potentiometers shaft ever so slightly so that when you go to push on the knob you don't damage the pot shaft by exerting too much downward pressure. If you have any questions regarding install please let us know. Thank you.
