OVERVIEW The Diezel Hagen is the ultimate 100-watt head for today’s modern player. It features 4 independent Channels (Clean, Crunch, Mega, and Lead) with 4 independent Eq’s delivering any tone imaginable. Four power tubes and 6 12ax& preamp tubes power the Hagen creating tones from crystal cleans to high voltage crunch to modern metal and soaring leads. The flexibility of controls such as dual master volumes and MIDI programmable FX loop make it possible to access any of the set tones by the push of a single button. The result is a perfect amp giving versatility and functionality for both live performance and studio applications.
DIEZEL HAGEN 100-WATT TUBE AMP HEAD FEATURES:
Sonically flexible amp head with a modern, open voice

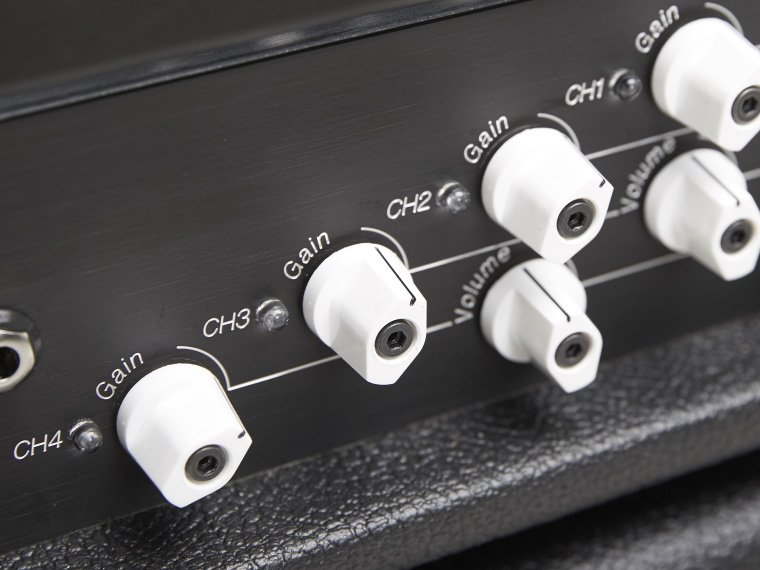

4 channels cover a massive range of gain
Parallel, series, and MIDI-switchable effects loops deliver supreme versatility

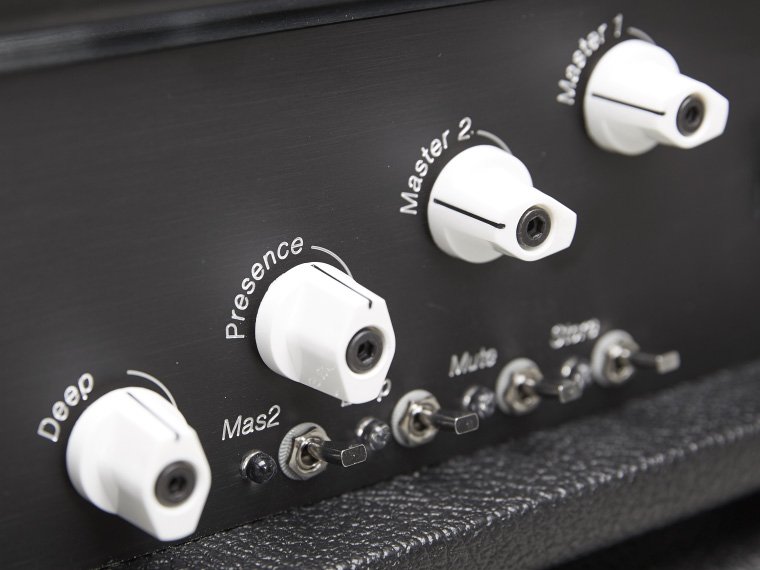

2 switchable master volumes are ideal for boosting leads
Can be controlled via MIDI or the optional FS7-HA Switcher
Global presence and deep controls dial your tone into your venue
100 watts of 6L6 tube tone
Compensated line output sends a cabinet-emulated tone direct to the board (requires a load)
TECH SPECS
Type:Tube
Number of Channels:4
Total Power:100W
Preamp Tubes:6 x 12AX7
Power Tubes:4 x 6L6

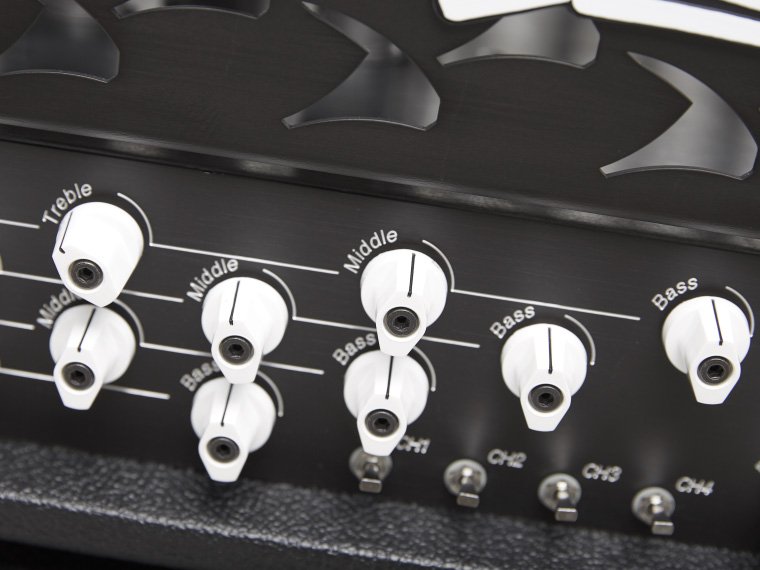

EQ:3-band EQ
Inputs:1 x 1/4"

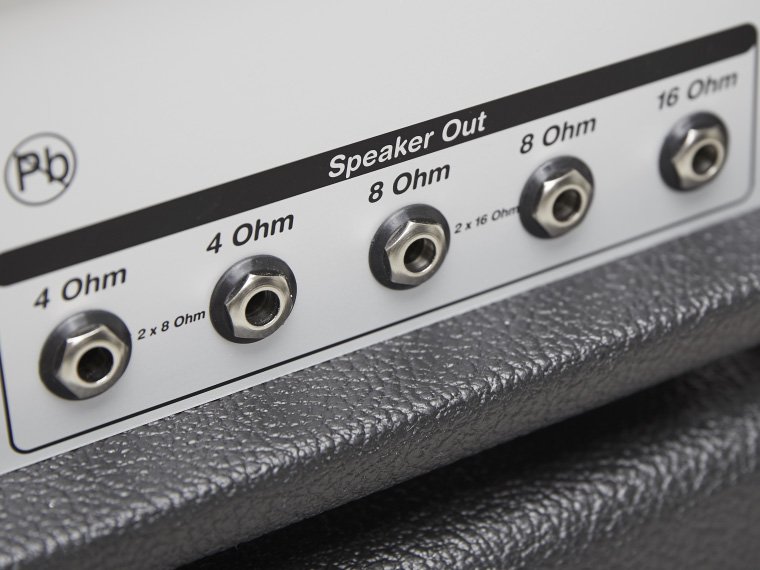

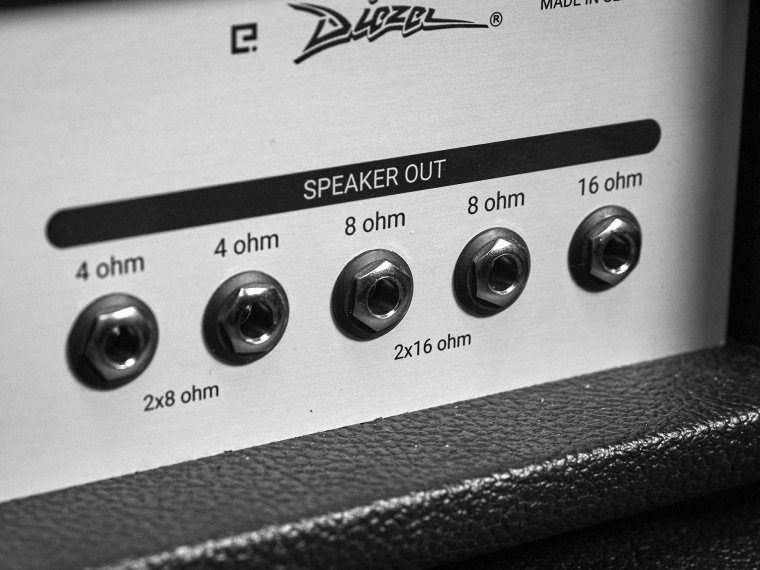

Outputs:2 x 1/4" (4 ohms), 2 x 1/4" (8 ohms), 1 x 1/4" (16 ohms), 1 x 1/4" (tuner), 1 x 1/4" (compensated)

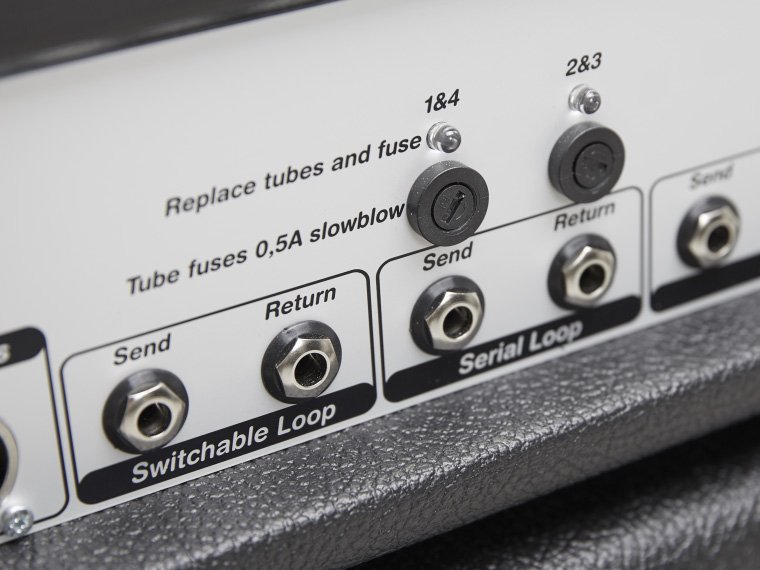

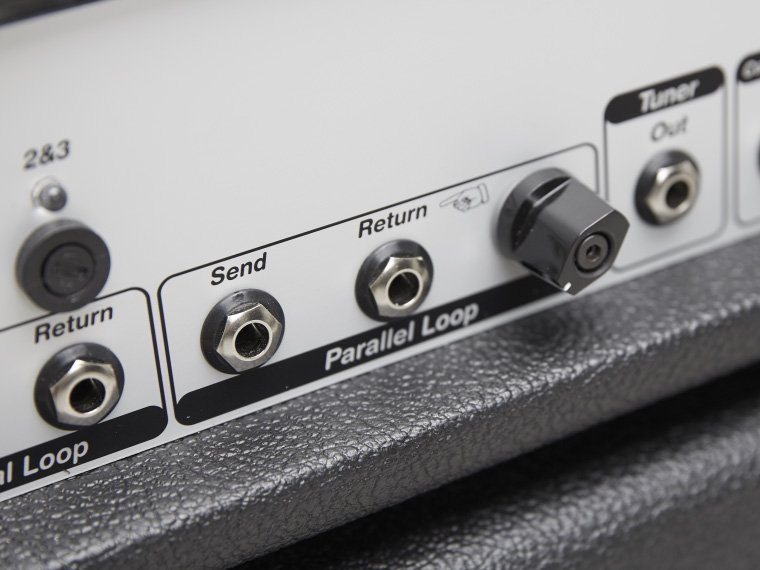

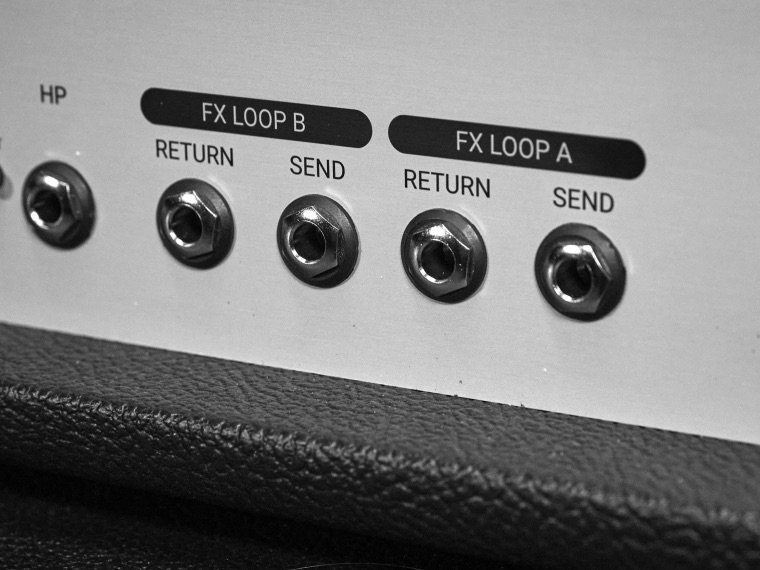

Effects Loop:Switchable, Serial, Parallel

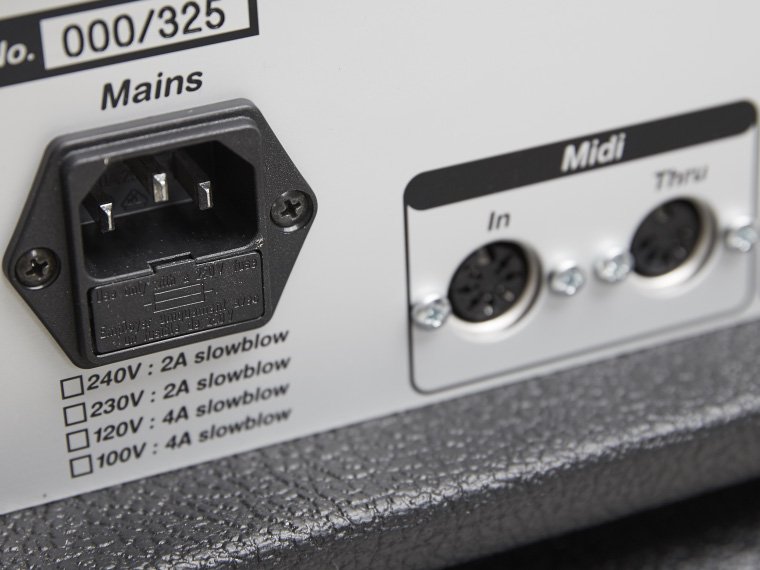

MIDI I/O:In/Thru

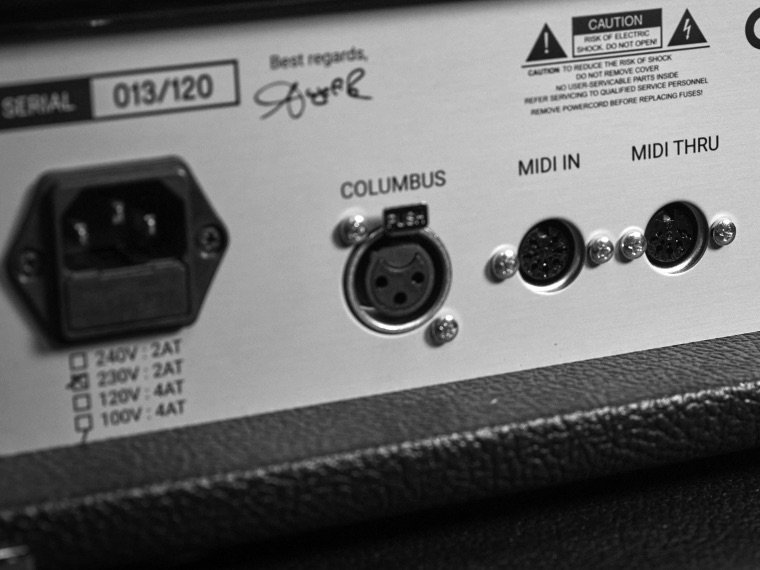

Footswitch I/O:1 x 1/4" (channel, master, loop, mute), 1 x XLR (Columbus footswitch)
