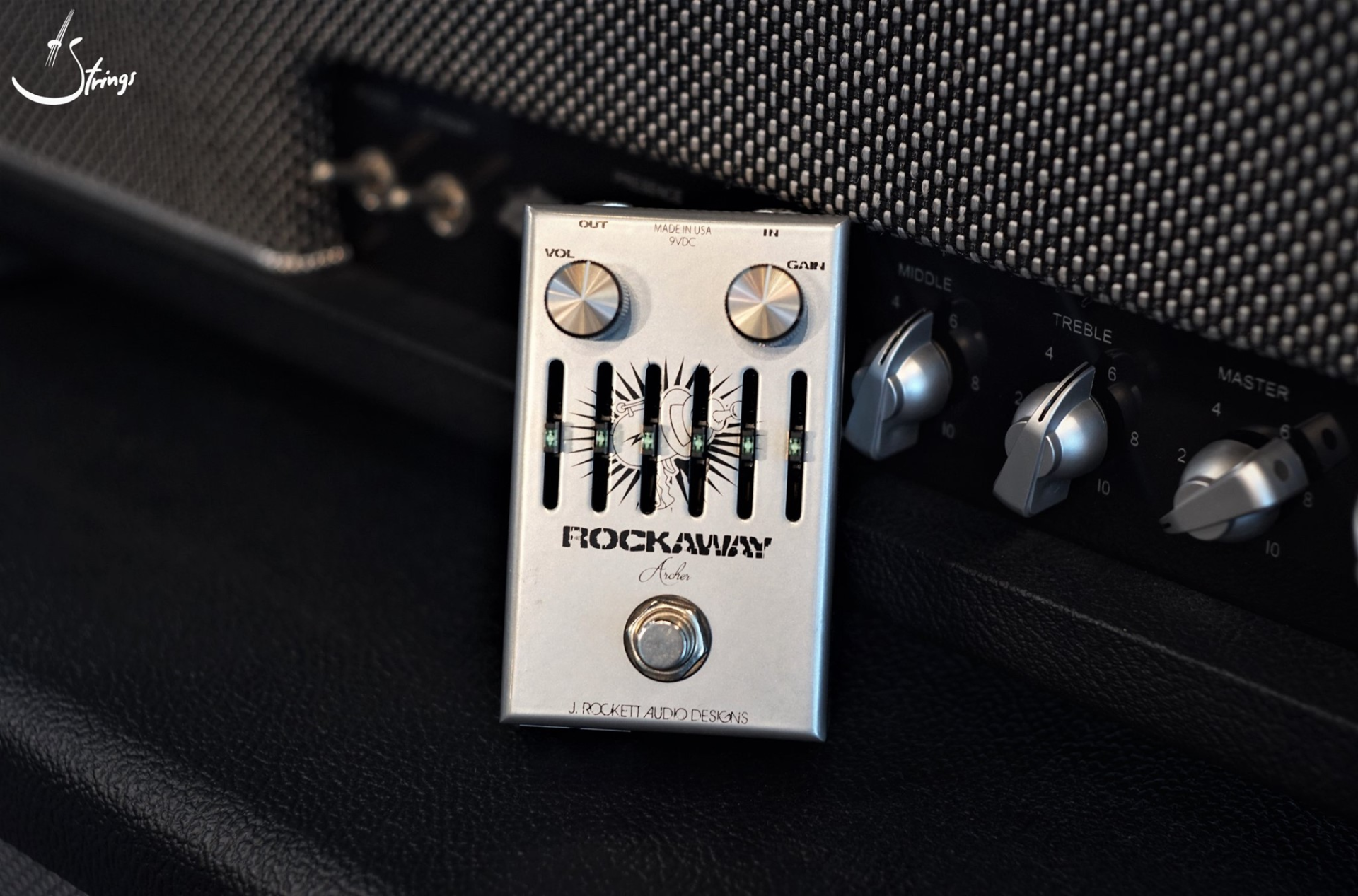

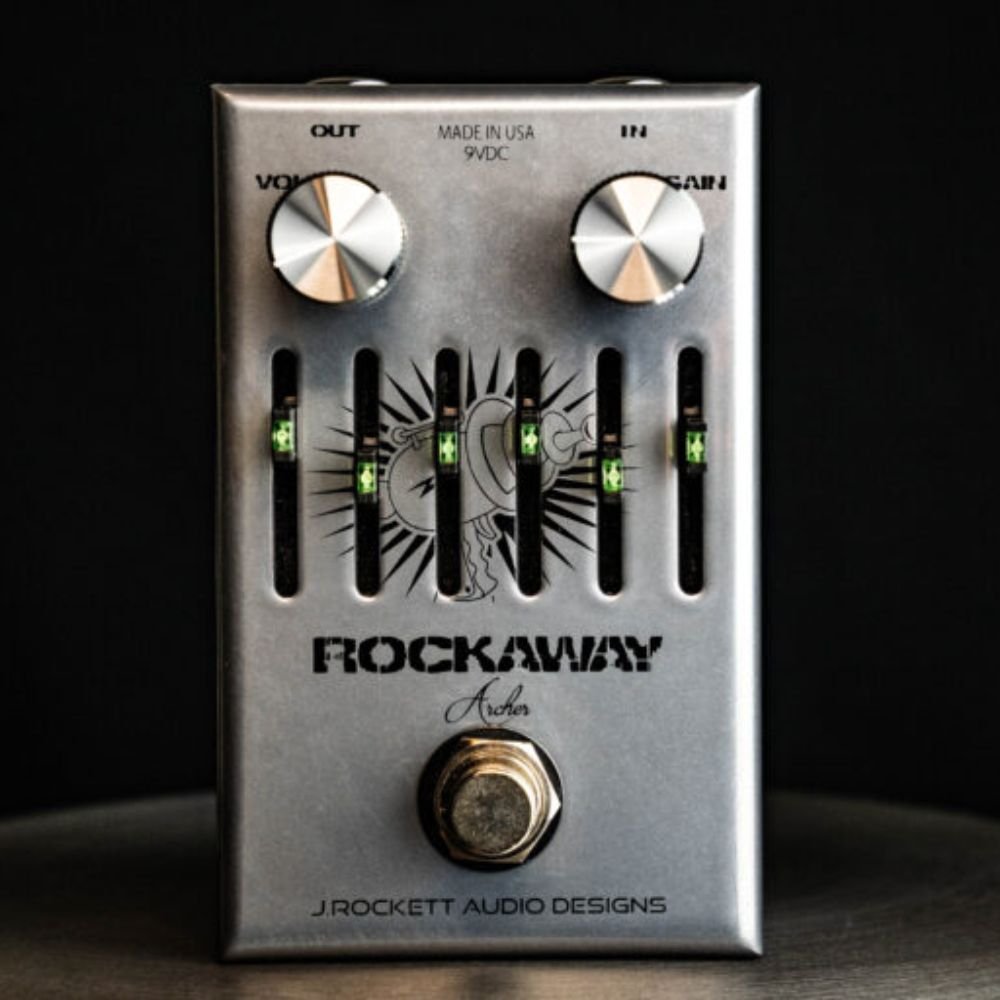

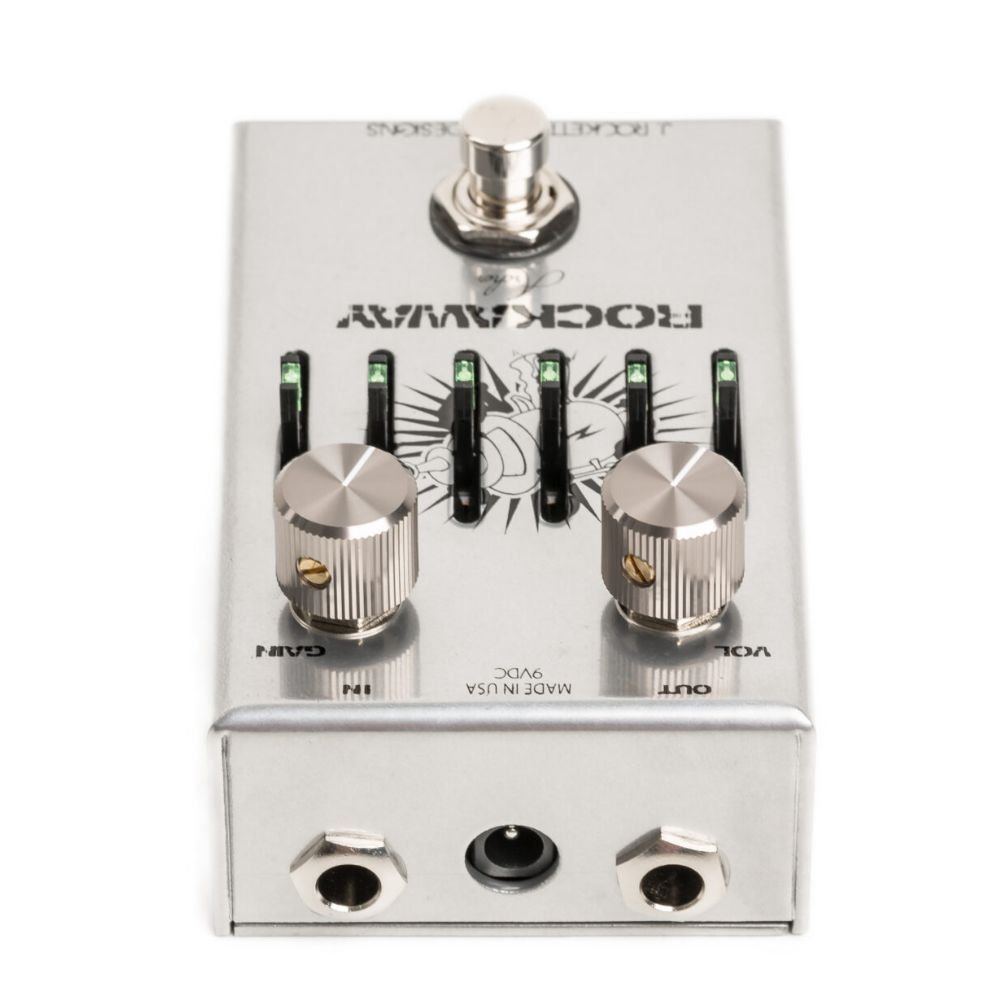

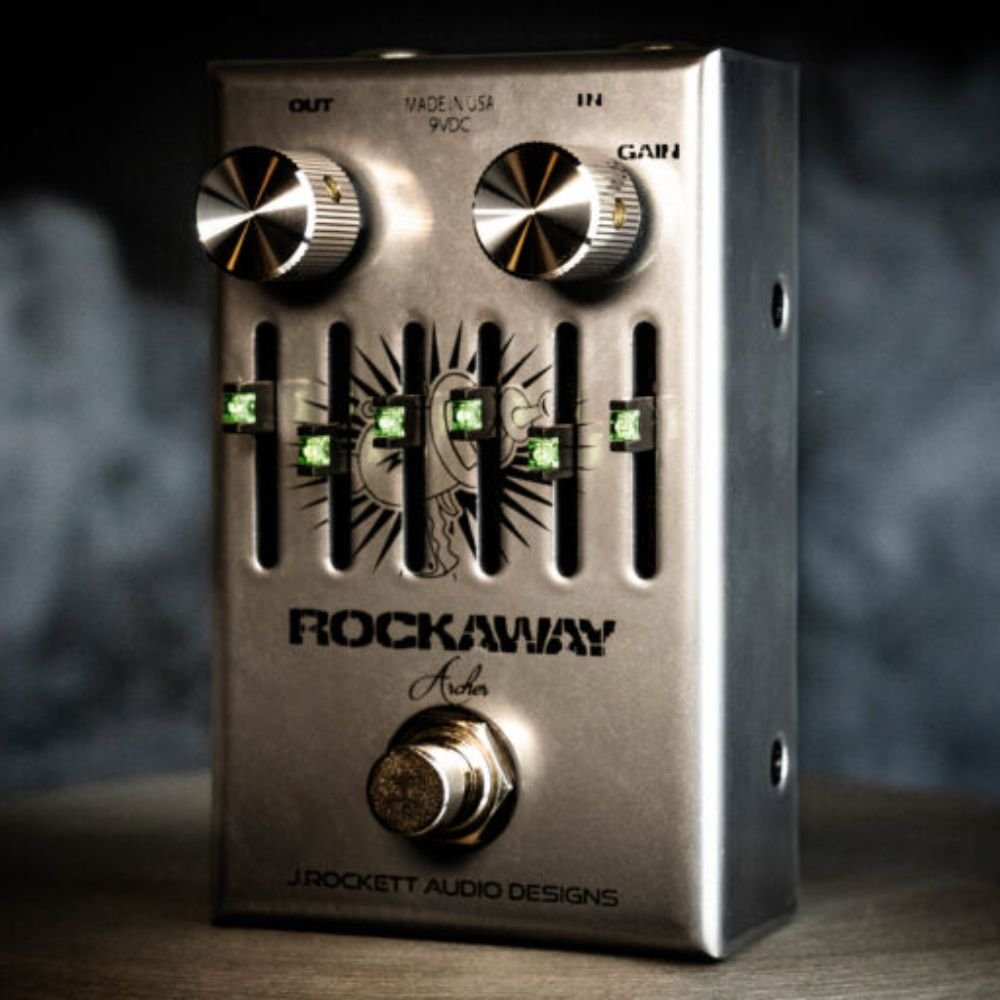

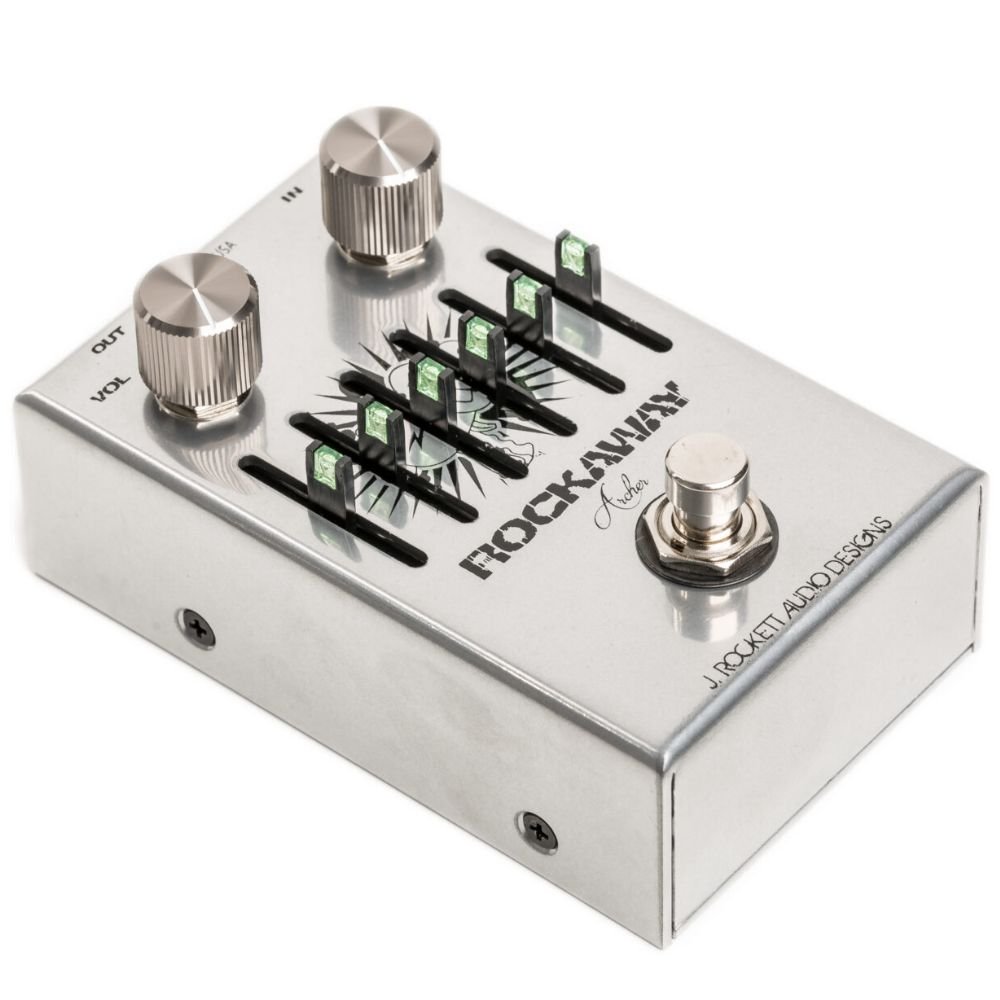

The Rockaway is an overdrive and EQ all in one. Developed for legendary guitarist Steve Stevens as an all in one solution to Steve’s overdrive and EQ needs the Rockaway combines the iKon profile with a graphic EQ.
Controls
Six band graphic EQ
Volume and gain knobs
The settings include Up to 18dB of cut or boost at 6 different frequencies. Each frequency is increased by pushing its corresponding slider up on the pedal or decreased by pushing them down. This also adds or decreases volume.
6 Band Graphic EQ
Band 1 – 100 Hz Far Left
Band 2 – 200 Hz
Band 3 – 400 Hz
Band 4 – 800 Hz
Band 5 – 1.6K
Band 6 – 3.2K Far Right
Size & Power
4.00″ x 2.50″
9V DC operation with standard – tip and + sleeve
30mA Current Draw
Internal 18v Charge Pump (DO NOT USE 18v POWER SUPPLY, ONLY USE NEGATIVE TIP 9v AS LABELED ON THE FACE OF THE PEDAL)
