OVERDRIVE Drive: Analog op-amp with Soft Clipping 260K @ 1KhZ Level: Off - 20db Tone: 10db Boost @ 4KhZ | 15db cut @ 4KhZ Gain: Increases Signal to the clipping LEDS to increase distortion.
REVERB Analog signal path with digital plate reverb emulator. Level: Volume of wet signal, dry signal always unity level. Tone: Attenuates highs from wet signal only. Decay: Sets the level of wet signal feedback.
DELAY Analog signal path with digital repeats. Measured input impedance: 250K @ 1KhZ Level: Volume of the repeats, dry signal always unity level. Feedback: Number of repeats. Delay: Time between repeats ~50ms minimum / ~500ms maximum.

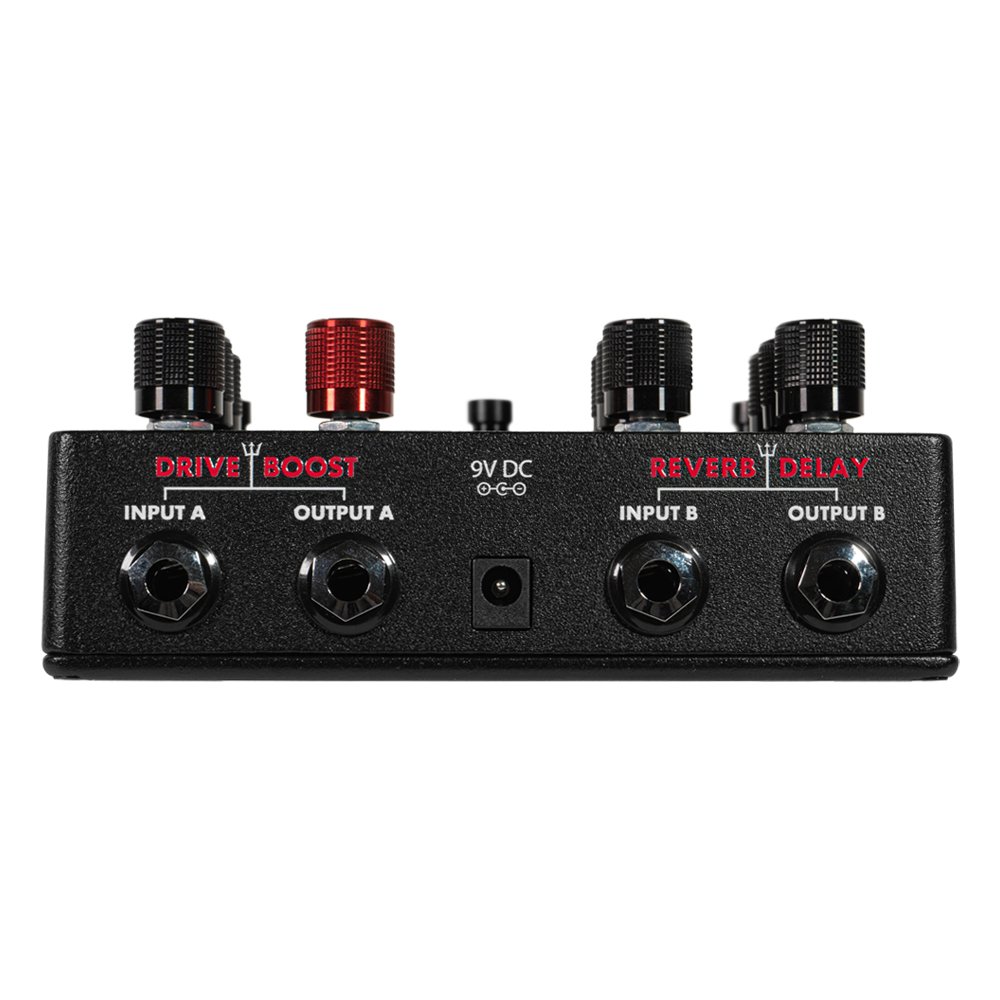

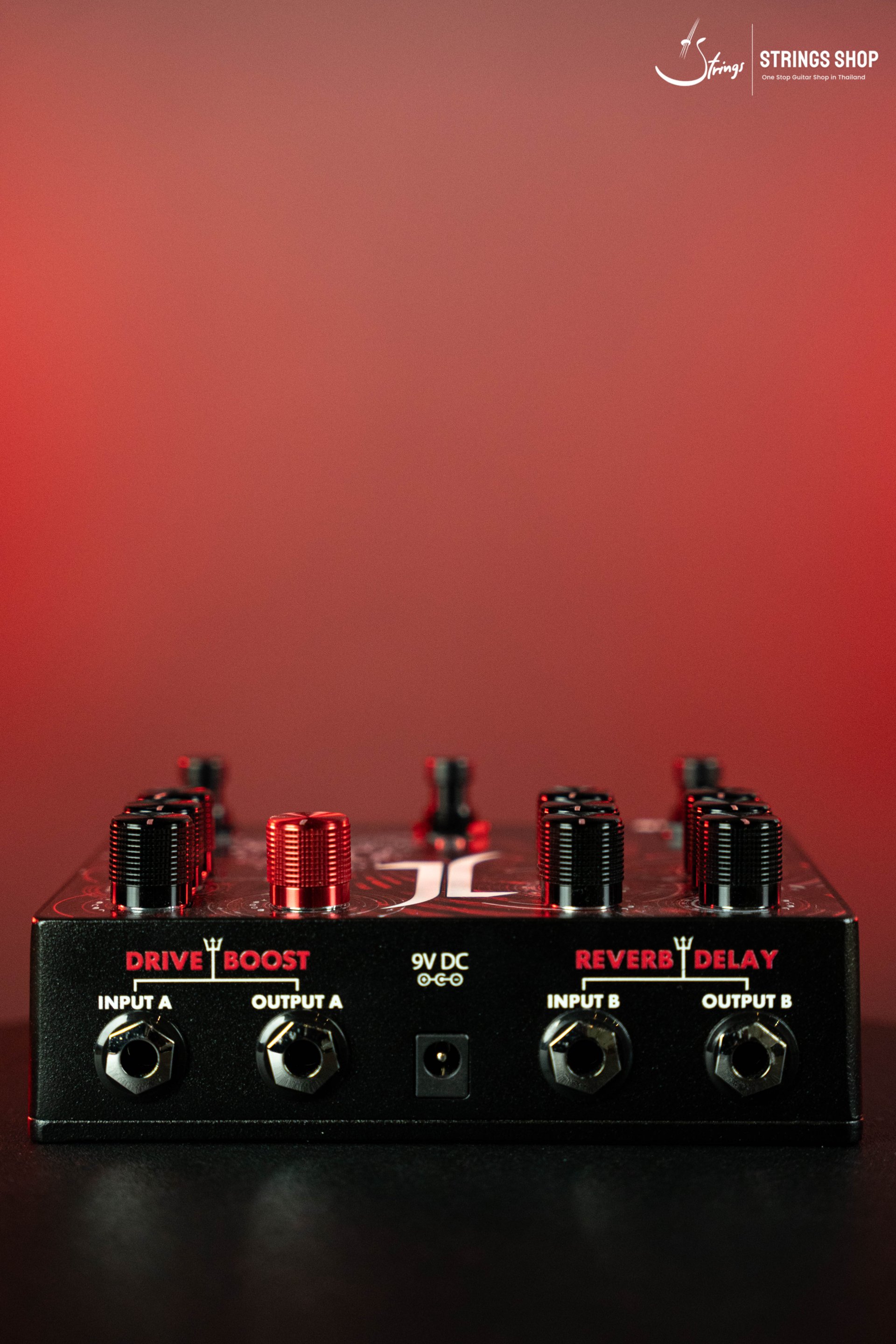

TECHNICAL DETAILS Size: 4.7" x 5.75" (121mm x 145mm) Power: 9V Power Jack (No battery connector inside) Power Draw: 160mA True Bypass
