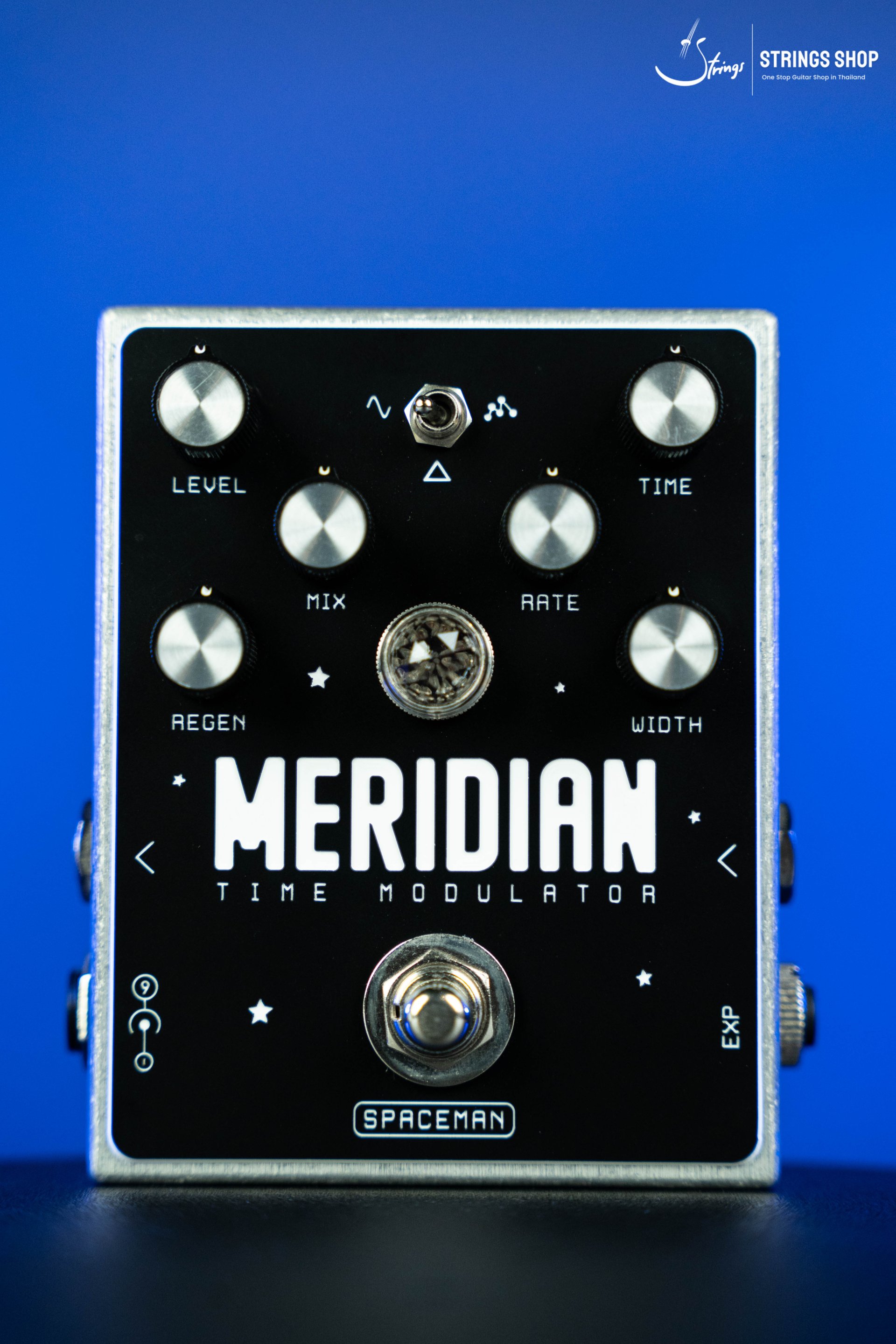

Spaceman MERIDIAN Analog Modulation Silver

The Meridian is a versatile, analog modulation juggernaut. At the core of the Meridian is a flexible 1024-stage bucket brigade delay line. With a range of 0.8ms to 50ms, it’s possible to produce a variety of liquid chorus tones, as well as true pitch-shifting vibrato, wispy phasing, shimmering flange, static comb filtering, double-tracking and more. We carefully designed the Meridian to have the highest sound quality, lowest noise signal path possible – and you’ll notice. For users tired of noisy, brittle modulation pedals, the Meridian offers a clear and articulate tone while providing tons of the analog warmth BBDs are known for.

The LFO section consists of three waveshapes: Sine, Triangle, and Flux. The Flux wave is a wobbly, uneven derivation of the triangle wave with unpredictable skips and jumps. When used subtly it can impart a beautiful “alive” feeling to the modulation.

Turn the WIDTH control to minimum and the LFO is stopped. You can now directly sweep the delay line with the RATE and TIME controls, to achieve static comb filtering (short delay times); or a double-tracking, pseudo slapback effect (moderate to high delay times). Expression and CV control is possible using the EXP jack. An internal slide switch selects either the RATE or WIDTH parameters to control. This is especially fun when in Comb Filter mode.

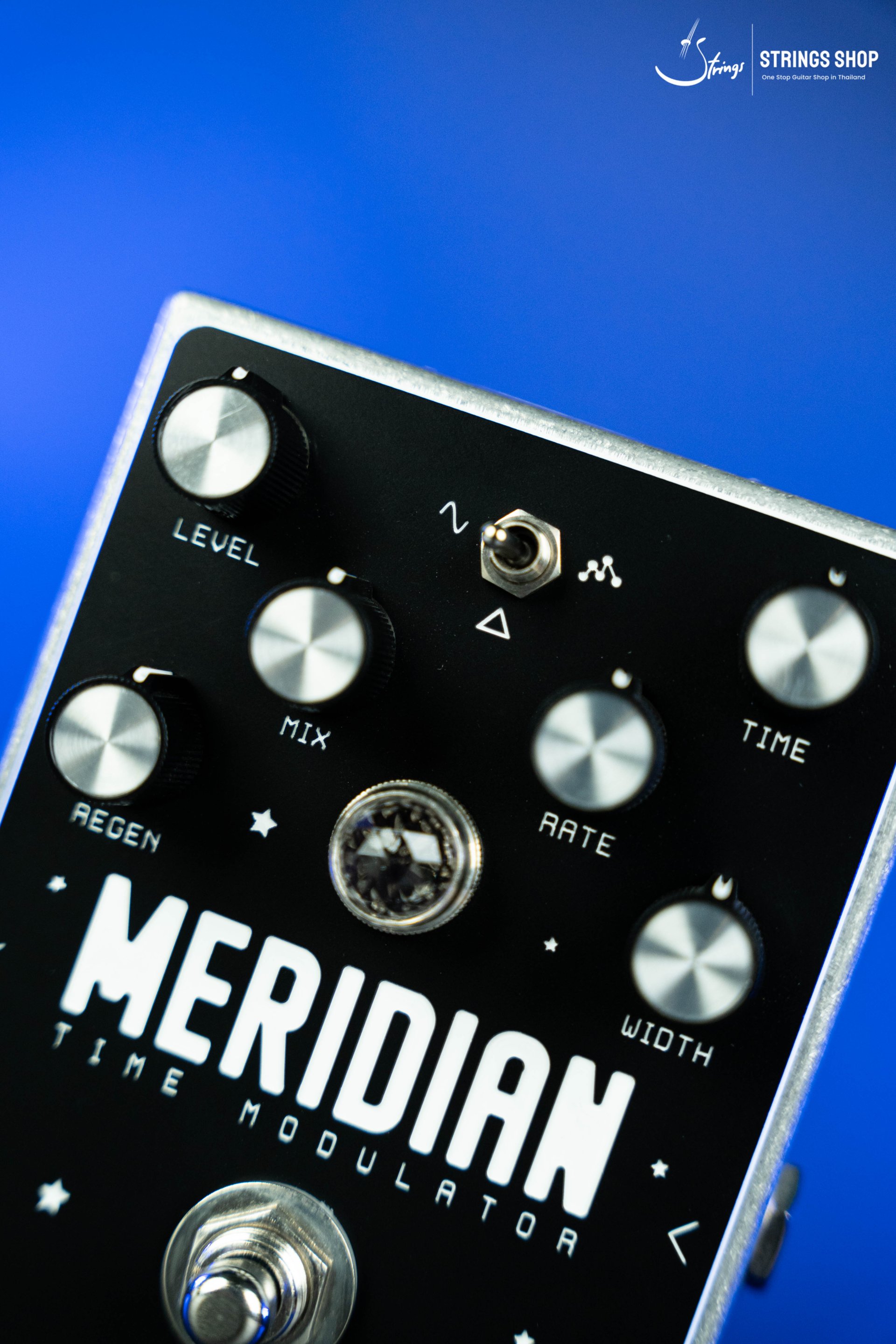

The Meridian includes other unique and often overlooked controls, allowing you to dial in a detailed sound that works in virtually any setup; be it guitar, synth, harp, bass, or drum machine. The LEVEL control sets your desired output volume. MIX sweeps from full dry to full wet, giving you additional control over the intensity of effect. REGEN adds depth and dimension and is essential when creating flanger and phaser sounds. It also produces the metallic clank of comb filtering at short delay times, and drippy rhythmic grind at longer delay times.

The Meridian is our most flexible, and sophisticated modulation effect to date, and will instantly whisk you through the quantum singularity into another dimension.

MERIDIAN FEATURES
All analog signal path
High headroom MN3007 bucket brigade delay IC
0.8ms-50ms delay time
Ultra-low-noise design
Wide range LFO with Sine, Triangle, and Flux waveshapes
LFO speed 0.12Hz (8 seconds) to 15Hz (65ms)
Easily dial in chorusing, vibrato, flanging, double tracking and more
CV/EXP options for controlling Rate, Width, or Delay Time
Mix control for fully wet or dry tones, and a dedicated Level control
